Rolling Counter Doors

Overhead Door™ offers an array of appealing options for rolling counter doors, catering to openings up to 20 feet wide and 9 feet high. Perfectly suited for various settings, including commercial, retail, corporate, and professional spaces, our extensive range of counter doors includes three main varieties: metal curtain, wood curtain, and integral frame and sill models.

To View Our Counter Door Systems Brochure

Red Banner Logo for the Original Overhead Door Company since 1921. This is the 100 year for Overhead Door Company of Huntsville.

Are You Ready For a Quote?

Schedule your free estimate today with the highest rated commercial installer in North Alabama.

Get a Quote

Overhead Garage Door Services - a technician studying plans for installation of a new garage door

Let’s Get Started

Feel free to contact us with any questions you have about purchasing a new commercial counter door.
Speak to a friendly “local” voice. Never a call center.

Contact Us

Model 650 Rolling Counter Door

Distinguished by their painted galvanized steel slat curtain finish, Model 650 rolling counter doors are designed to fit openings to 20′ wide and 9′ high. These doors are ideal for a host of small-opening applications where security is important and a non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.​​​​

Standard max width
20’0″ (6096 mm)
Standard max height
9’0″ (2743 mm)
Curtain
Interlocking flat profile slats (F-158) with endlocks; galvanized steel
Hood
Galvanized steel
Finish
Galvanized steel primed with choice of baked-on polyester top coat in gray or tan
Brackets
Steel plate to support curtain, counterbalance and hood
Guides
Extruded aluminum
Counterbalance
Helical torsion springs housed in a steel tube or pipe barrel
Mounting
Face of wall, between jambs
Operation
Manual push up
Lock
Interior slide bolt
Warranty
24-month limited ​​​​​​

Counter Door-Model 650-651-652-2-HIGH

Model 651 Rolling Counter Door

Distinguished by their No. 4 stainless steel curtain finish, Model 651 rolling counter doors are designed to fit openings to 20′ wide and 9′ high. These doors are ideal for a host of small-opening applications where security is important and non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.​​​​​​

Standard max width
20’0″ (6096 mm)
Standard max height
9’0″ (2743 mm)
Curtain
Interlocking flat profile slats (F-158) with endlocks; stainless steel
Finish
No. 4 brushed steel
Hood
Stainless steel
Brackets
Steel plate to support curtain, counterbalance and hood
Guides
Extruded aluminum
Counterbalance
Helical torsion springs housed in a steel tube or pipe barrel
Mounting
Face of wall, between jambs
Operation
Manual push up
Lock
Interior slide bolt
Warranty
24-month limited ​​​​​

counter rolling door model 651 by Overhead Door Company of Huntsville/North Alabama in white surrounding by stainless steel. it is in a restaurant

Model 652 Rolling Counter Door

​​​​​​​​​​​​​​​​​​Distinguished by their clear anodized aluminum curtain finish, Model 652 rolling counter doors are designed to fit openings to 20′ wide and 9′ high. These doors are ideal for a host of small-opening applications where security is important and non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.​​​

Standard max width
20’0″ (6096 mm)
Standard max height
9’0″ (2743 mm)
Curtain
Interlocking flat profile slats (F-158) with endlocks; aluminum
Hood
Aluminum
Finish
Clear anodized aluminum
Brackets
Steel plate to support curtain, counterbalance and hood
Guides
Extruded aluminum
Counterbalance
Helical torsion springs housed in a steel tube or pipe barrel
Mounting
Face of wall, between jambs
Operation
Manual push up
Lock
Interior slide bolt
Warranty
24-month limited ​​​​​​

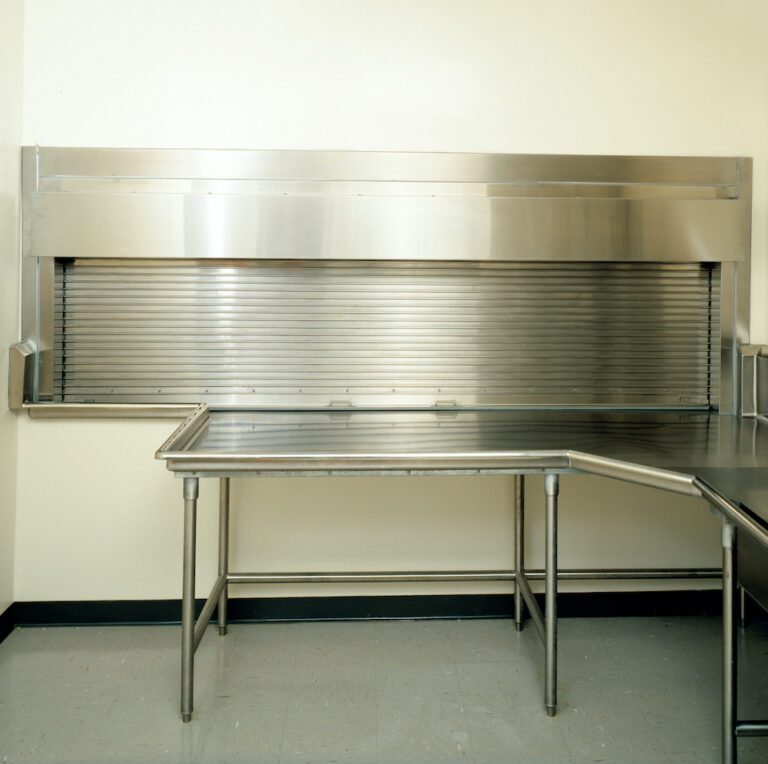

Model 652 Aluminum Rolling Counter Door by Overhead Door Company of Huntsville/North Alabama

Model 655 Rolling Counter Door

The integral frame / packaged counter door Model 655 combines an attractive finished appearance with the convenience of a factory-assembled unit. These rolling counter doors feature a high-quality 16-gauge stainless steel frame, hood and fascia complemented by a 14-gauge sill. Available to fit openings up to 12’5″ (3785mm) wide and 6’5” 1956 mm) high, these rolling counter doors have a variety of applications including food service areas.

Standard max width
12’5″ (3785 mm)
Standard max height
6’5″ (1956 mm)
Curtain
.04″ (1 mm) aluminum slats
Integral frames
16-gauge stainless steel
Sill
14-gauge stainless steel
Hood
Stainless steel
Mounting
Between jambs
Operation
Push-up
Warranty
OEM limited​​

Door Options, Colors, Specs – Model 655

A man holding a business card that invites you to call Overhead Door Company of Huntsville/North Alabama to schedule your service all for a broken garage door spring in Huntsville, Alabama

Model 657 Rolling Counter Door

The integral frame / packaged counter door Model 657 combines an attractive finished appearance with the convenience of a factory-assembled unit. These non-rated doors feature a high-quality 16-gauge stainless steel frame, hood and fascia complemented by a 14-gauge stainless steel sill. Available to fit openings up to 12’5″ (3785 mm) wide and 6’5” (1956 mm) high, these rolling counter doors have a variety of applications including food service areas.​​​​​​​​​

Standard max width
12’5″ (3785 mm)
Standard max height
6’5″ (1956 mm)
Curtain
Interlocking 22-gauge stainless steel slats
Integral frames
16-gauge stainless steel
Sill
14-gauge stainless steel
Hood
Stainless steel
Mounting
Between jambs
Operation
Push-up
Warranty|
OEM limited​​​​

Garage door service man at the Overhead Door Company that serves Brownsboro, Alabama taking inventory to make sure there the service man trucks are fully stocked for their daily calls in Brownsboro alabama

Model 658 Rolling Counter Door

The integral frame / packaged counter door Model 658 combines an attractive finished appearance with the convenience of a factory-assembled unit. These non-rated counter doors feature a high-quality 16-gauge primed steel frame, hood and fascia complemented by a 14-gauge stainless steel sill. Available to fit openings up to 12’5″ (3785 mm) wide and 6′ (1956 mm) high, these rolling counter doors have a variety of applications including food service areas.​

Standard max width
12’5″ (3785 mm)
Standard max height
6’5″ (1956 mm)
Curtain
Interlocking 22-gauge primed galvanized steel slats
Integral frames
16-gauge stainless steel
Sill
14-gauge stainless steel
Hood
Stainless steel
Mounting
Between jambs
Operation
Push-up
Warranty
OEM limited​​​​

Commercial Service Team preparing to inspect a commercial job

Model 665 Rolling Counter Door

These​ wood counter doors offer the richness of natural wood to enhance the beauty of any application. Manufactured of high-quality wood – red oak (standard), douglas fir, white oak, birch or exotic species — these counter ​doors are ideal for use in hotels, banks, churches, libraries, offices, restaurants and schools.​​​

​​​​​​

Standard max width
12′ (3658 mm)
Standard max height
8′ (2438 mm)
Curtain
Red oak
Slats
Wood slats, 1 3/4″ (16 mm) high by 1/2″ (13 mm) thick
Finish
Unfinished
Guides
Wood to match slats
Bottom bar
Wood to match slats
Mounting
Face of wall, between jambs
Operation
Manual push up
Lock
Thumbturns
Warranty
OEM limited ​​​​​

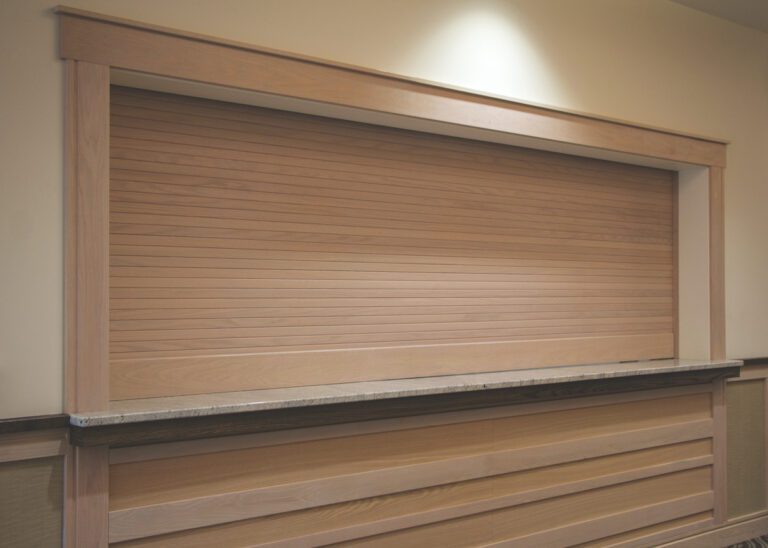

natural wood for a rolling counter door by Overhead Door Company of Huntsville/North Alabama

Also Available
FireKing® Rolling Counter Fire Doors
View Our Fire Rated Counter Doors

FireDoor-660-661-662-1-HIGH

Commercial Architects

Architect’s Corner, a resource for commercial and residential architects, contains comprehensive technical and resource materials to support your project, including drawings for installing garage doors. Simply select the specific residential or commercial application or product that suits your construction or remodeling project, and you’re just clicks away from downloading specifications to your desktop.

Visit Our Architect’s Corner
